Chimney camera

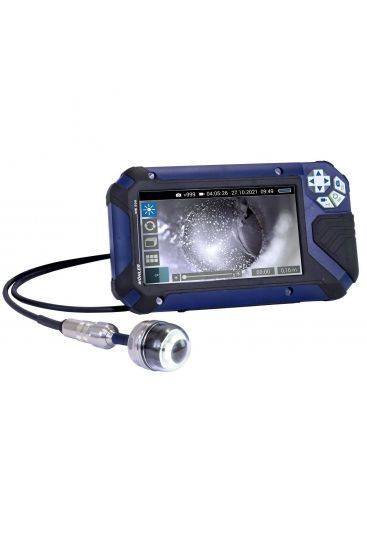

Wöhler VIS 500 Cable Camera
Wöhler VIS 500 Cable Camera
Wöhler VIS 500 Cable Camera
Wöhler VIS 500 Cable Camera
Wöhler VIS 500 Cable Camera
Wöhler VIS 500 Cable Camera

Woehler
Chimney camera

The Wöhler inspection range of cameras can be set up specifically for chimney inspection related work and configured appropriately for use in the UK.
Wohler UK have been working with industry experts to develop and construct a more user friendly visual inspection system which is specifically designed and built for the UK Chimney market and that can be operated in conjunction with any design of access rod system.

One important factor to consider with this system is the signal from the camera head to the monitor is transmitted through a rubber cable allowing for more flexibility and movement within a confined space, therefore if the cable either twists or bends it’s unlikely to snap.

Android iOS
Modular system
one monitor, many applications through upgrade sets
Intuitive handling
with uniform operating concept of the Wöhler VIS series
Position and angle indication
of the camera head in the display
All-round view
Waterproof rotatable and pan and tilt camera head Ø 1.5"
from £3,350.00 Price excl. Tax
Image with a monster
Please note: As soon as you watch the video, information about it is transmitted to YouTube. You can find more information about this under read more
Absolutely suitable for craftsmen

For inspection from above, carry the monitor in front of your body in the secure carrying strap system so that you have both hands free. If you are inspecting from below, you can operate the camera directly from the practical case. The system is modular, so that you have the camera at hand with just a few grips, just as you need it for your upcoming mission.

Perfect images for your targeted use

Ready to use immediately: open the case - turn on the camera - get started. It couldn't be more practical. With the Wöhler L 200 Locator, damaged areas can be located non-destructively. The Locator also facilitates orientation, especially in the case of chimneys with an unknown course, e.g. when flue pipe connections are to be made.

Some things you've never seen. Until now.

Whether behind walls, in pipes or products – sometimes the devil is in the details. With Wöhler’s video inspection systems, you can finally see clearly and take immediate action..

Please note: As soon as you watch the video, information about it is transmitted to YouTube. You can find more information about this under read more



Overview Wöhler Inspection Cameras

 Wöhler VIS 250
Inspection Camera		Wöhler VIS 500
Inspection Camera		Wöhler VIS 700 HD
Inspection Camera

Pan and tilt camera head 1.5"



interchangeable

interchangeable

Color camera head 1" dia

optional & interchargeable

optional & interchargeable

HD touch screen
OperationKeyboard integrated in caseControl pad on monitor unitJoystick / Touchscreen
Anti slide standOptional anti slide mat Optional anti slide mat
Adjustable focus
Distance measurement
Voice recording via optional headset
Display position and angle
Video & Photo recording4 GB SD memory card4 GB internal memory or optional USB stick32 GB SD memory card, no internal memory
Home function
Transmitter in camera head
Wöhler VIS app incl. report function
Operating time2 x 2 hours6 hours4 hours
different configurations possible
Removable camera rod
All properties
Modular system

one monitor, many applications through upgrade sets

Intuitive handling

with uniform operating concept of the Wöhler VIS series

Position and angle indication

of the camera head in the display

All-round view

Waterproof rotatable and pan and tilt camera head Ø 1.5"

Bright illumination

with camera LEDs and optional additional lighting

Sound and voice recording

via headset

Storage of photos and videos

Documentation on site for you and your customers

Pictures

High resolution images

Home Function

for aligning the camera head in a straight position - display parallel to the pipe

Easy cleaning

Double-shell case with separate compartment for the camera rod for cleaning with water

Localization

Integrated transmitter in the camera head enables exact localization of the camera head

Wöhler Video inspection app

operation, image view and report

mains-independent operation

due to lithium-ion battery with up to 6 hours working time

Storage

Direct storage of photos and videos on the integrated memory (4 GB) or on a USB stick

Sets
Wöhler VIS 500 Cable Camera
Wöhler VIS 500 INT as a Set for rods
Wöhler VIS 500 INT as a Set for rods
Ø 40 mm, cable reel 20m
Order no. 12176
Delivery time 1-3 working days, New Goods
£4,658.00
Price plus VAT and shipping
Wöhler VIS 500 Inspection Camera INT
Wöhler VIS 500 Inspection Camera INT
Camera head Ø 40 mm, cable reel 20m
Order no. 12141
Delivery time 1-3 working days, New Goods
£4,091.00
Price plus VAT and shipping
Wöhler VIS 500 Inspection Camera INT
Wöhler VIS 500 Inspection Camera INT
Camera head Ø 40 mm, 20 m camera cable
Order no. 12342
Delivery time 7-14 working days, New Goods
£3,350.00
Price plus VAT and shipping
Related products
Guidance Set 100
Guidance Set 100
for camera head Ø40 mm
Order no. 4240
Starter Set
Starter Set
for Wöhler VIS 400/ VIS 500
Order no. 4439
Wöhler L 200 Locator
Wöhler L 200 Locator
for camera heads Ø 26 / 40 mm
Order no. 7430
Wöhler Light Ring 26/40, detachable
Wöhler Light Ring 26/40, detachable
for camera heads Ø 26 mm / Ø 40 mm
Order no. 11398
Wöhler Lowering Aid
Wöhler Lowering Aid
made of stainless steel
Order no. 5706
Replacement Plastic Domes (10 pcs.)
Replacement Plastic Domes (10 pcs.)
for Wöhler Camera Head Ø 40mm
Order no. 3675
Protection Sleeve
Protection Sleeve
for Wöhler Camera Head Ø 40 mm
Order no. 2641
Camera Roller Guide
Camera Roller Guide
suitable for camera heads and rods
Order no. 3681
Wöhler Miniature Camera Head Ø 26 mm
Wöhler Miniature Camera Head Ø 26 mm
Colour, detachable, with pouch
Order no. 420
Wöhler Camera Head Ø40 mm
Wöhler Camera Head Ø40 mm
detachable, pan and tilt
Order no. 870
VIS Centering Brush
VIS Centering Brush
for camera rods
Order no. 3854
Aluminium Case XXL
Aluminium Case XXL
48 x 27 x 48 cm
Order no. 5824
VIS Centering Brush
VIS Centering Brush
for camera heads and rods
Order no. 3850
Guidance Ball
Guidance Ball
for camera heads and rods
Order no. 3634
Carrying Strap System
Carrying Strap System
for Wöhler VIS 700 / VIS 500
Order no. 6921
Wöhler Camera Cable
Wöhler Camera Cable
20 m for VIS 400 / VIS 500
Order no. 9172
Guidance Weight
Guidance Weight
for camera heads and rods
Order no. 3857
Wöhler Stabilisation sleeve aluminium
Wöhler Stabilisation sleeve aluminium
Order no. 22182
Wöhler Camera Cable
Wöhler Camera Cable
30 m for VIS 400 / VIS 500
Order no. 7812
Camera holder
Camera holder
for reverse view - for Ø40mm camera head
Order no. 3720
Wöhler Stabilisation Sleeve
Wöhler Stabilisation Sleeve
for light ring
Order no. 3590
Centering Brush Extension
Centering Brush Extension
Ø20 cm
Order no. 3853
Spare Brushes
Spare Brushes
for centering brush (#3850), 24 pieces
Order no. 3858
Push adapter for stabilisation sleeve
Push adapter for stabilisation sleeve
VIS 2xx/VIS 3xx/VIS 400/VIS 700
Order no. 1387
Wöhler Camera Extension Cable 10 m
Wöhler Camera Extension Cable 10 m
with metering, Wöhler VIS 400/ 350/ 500
Order no. 8636
Magnetic Holder
Magnetic Holder
Monitor Wöhler VIS 500 / 700
Order no. 2939
Cable reel with 20 m camera cable
Cable reel with 20 m camera cable
with digital meter counter
Order no. 15121
Wöhler Camera Extension Cable
Wöhler Camera Extension Cable
30 m for VIS 400/ VIS 500
Order no. 8048
Stabilisation Tube
Stabilisation Tube
Order no. 21736
Wöhler Camera Viper
Wöhler Camera Viper
with push rod 20m, Ø6 mm
Order no. 7308
Wöhler Camera Viper
Wöhler Camera Viper
with push rod 30m, Ø6.5mm for VIS 400
Order no. 7301
Cable reel with 30m camera cable
Cable reel with 30m camera cable
with digital meter counter
Order no. 15122
Relining Adapter
Relining Adapter
only for detachable versions
Order no. 6888
Wöhler Telescopic Tube 1.6m
Wöhler Telescopic Tube 1.6m
with flexible gooseneck
Order no. 7005
Wöhler Telescopic Tube 3.4m
Wöhler Telescopic Tube 3.4m
with flexible gooseneck
Order no. 7024
Wöhler Camera Viper
Wöhler Camera Viper
with push rod 30m, Ø7 mm
Order no. 7307
Wöhler Camera Viper
Wöhler Camera Viper
with push rod 20m, Ø7 mm
Order no. 7309
Downloads
Wöhler VIS 500 Inspectioncamera with cable – Manual

PDF, 1.60 MB
Wöhler VIS 500 - Technical Data

PDF, 322.96 KB
Wöhler VIS Mini Catalogue

PDF, 19.96 MB
Wöhler VIS 500 - Leaflet

PDF, 996.98 KB
