Wöhler

Wöhler DP 600

UK Version
Order no. 26651

Wöhler DP 600

  • Tightness testing with lea kage rates up to 200.00 m³/h
  • Tightness testing of all chimney classes and flue gas systems
  • Tightness testing of flue gas systems of combined heat and power plants
  • Confirmation of a sufficient combustion air supply according to TRGI sheet G 625 (simple and detailed procedure)
  • Stove tightness testing
  • Tightness testing is also possible with negative pressure
£4,121.00
Price plus VAT and shipping
Delivery time 7-14 working days, New Goods
All properties
Tightness testing

with leakage rates up to 200.00 m³/h

Extended pressure range

up to ±7,000 Pa

Tightness classes preset

for flue gas systems N, P and H according to EN 1443

4 / 8 Pa test

without any auxiliary measuring instrument

Variable mode

with freely selectable pressure and leakage limit value

Integrated memory

for up to 100 measurement records

USB interface

for the PC

IrDA interface

for the printer

Additional Information
For leak testing chimneys and flue gas systems and for carrying out 4 Pa measurements

Scope of delivery:
Wöhler DP 600 with UK power cable and adapter for all leak measurements on flue gas systems in a plastic case

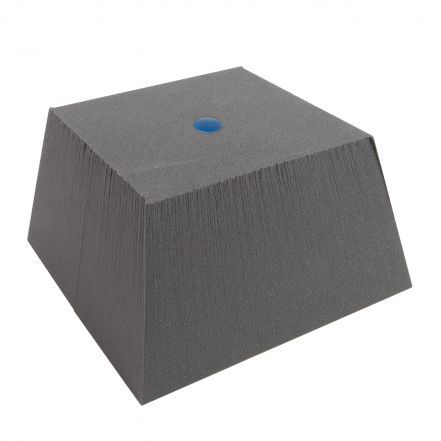

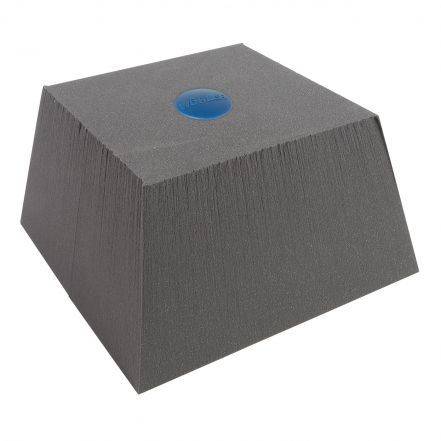

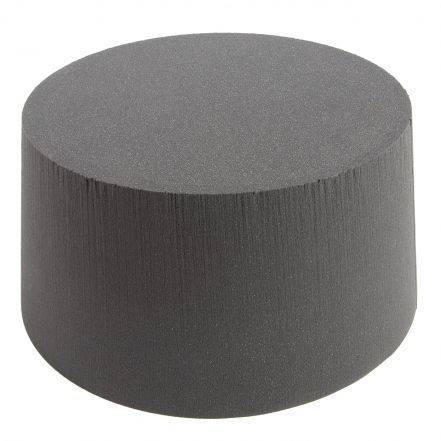

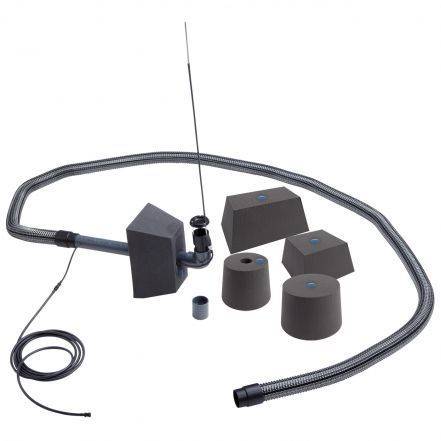

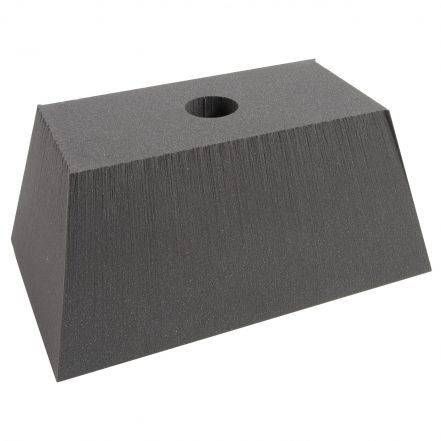

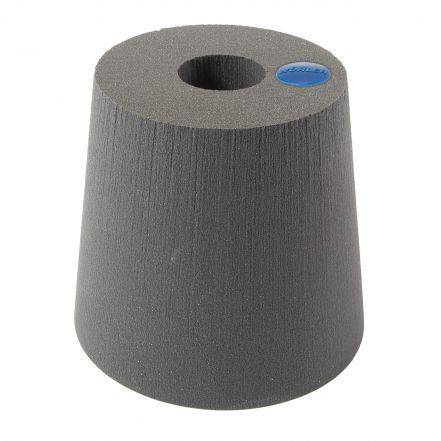

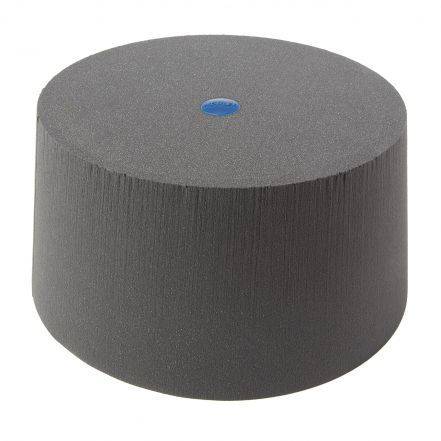

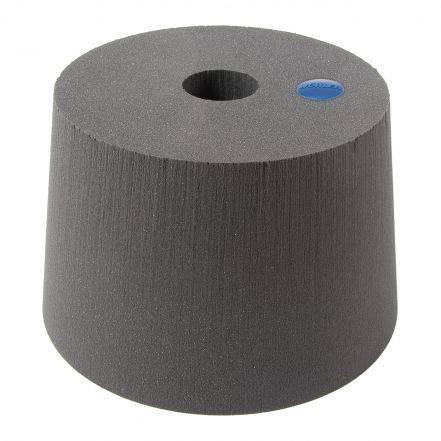

-without sealing bubbles and sealing elements-

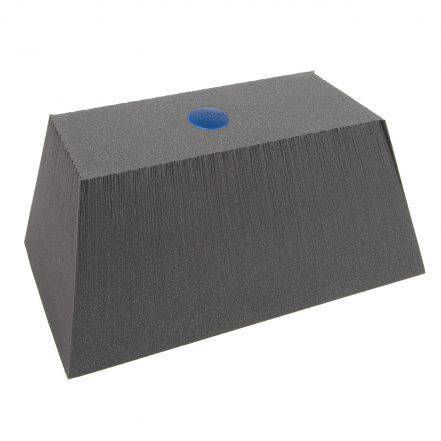

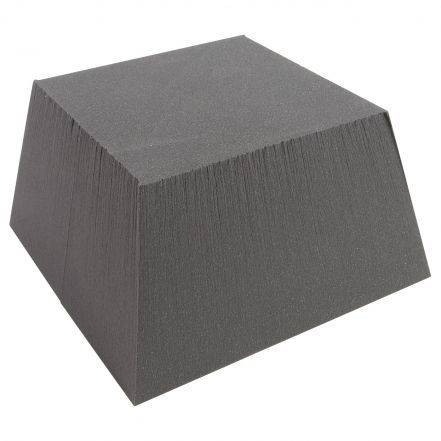

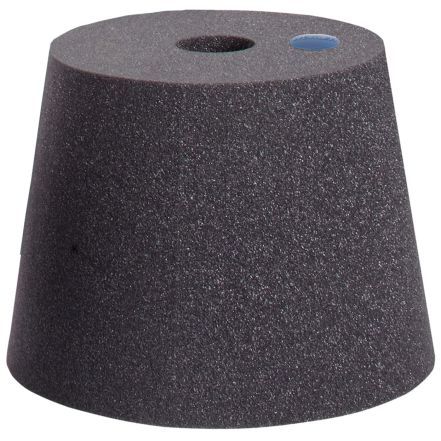

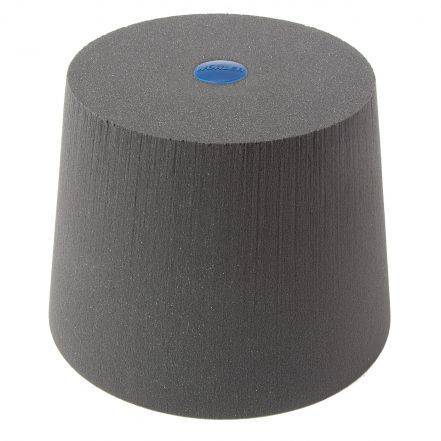

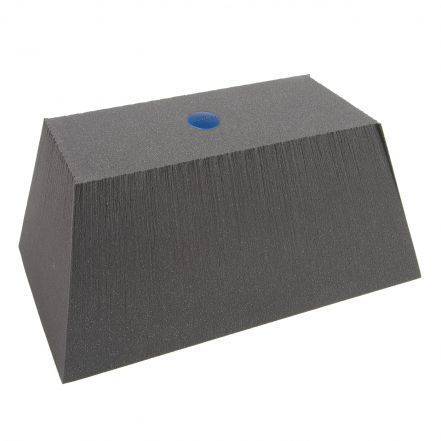

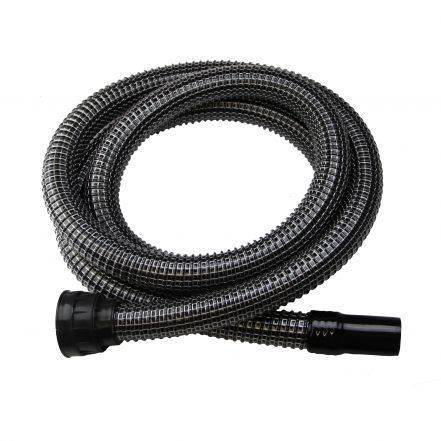

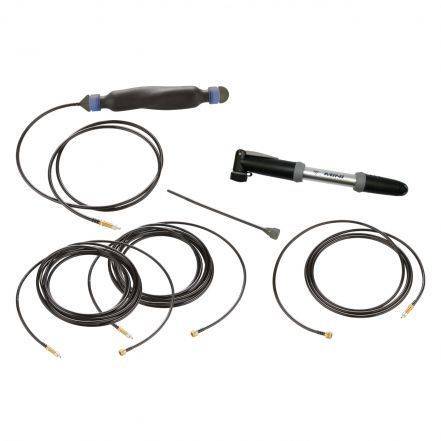

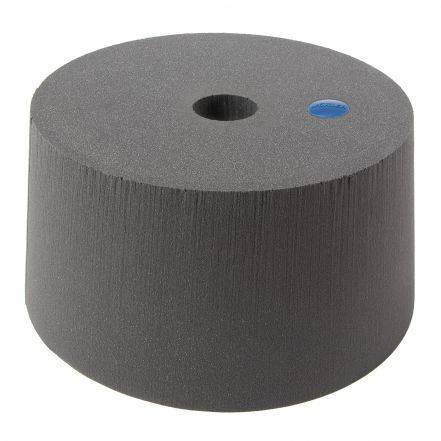

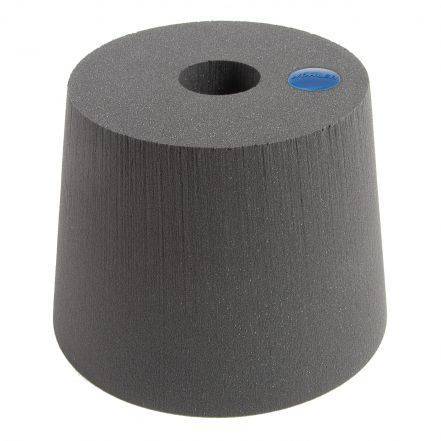

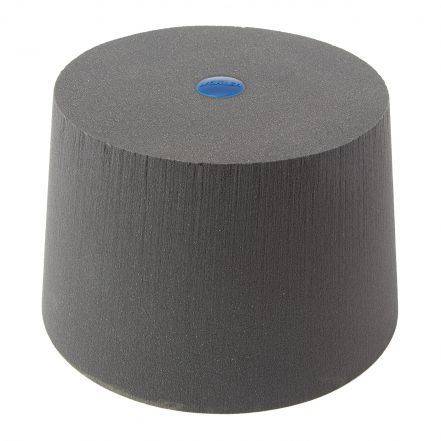

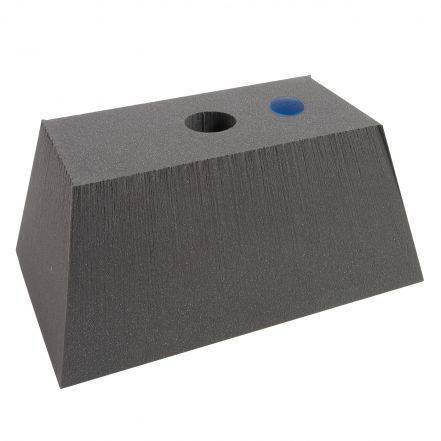

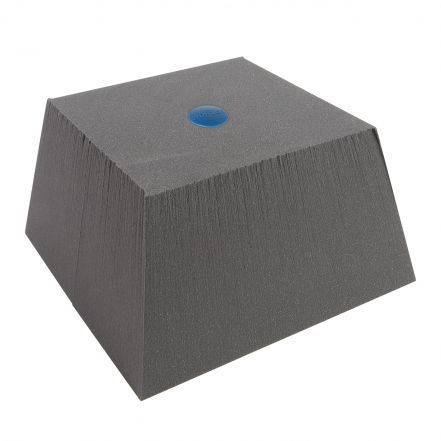

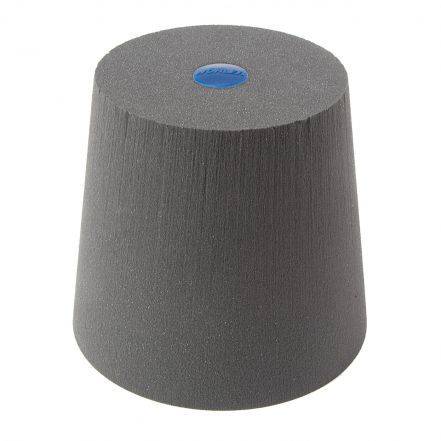

Related products
Leakage testing of exhaust gas systems
KNOWLEDGE_MENU_TITLE_TEXT:

Heating systems using low-temperature or condensing technology are generating fewer and fewer exhaust gas losses. The reduction of exhaust gas losses is linked to the reduction of the exhaust gas temperature. However, low flue gas temperatures can mean that the flue gases no longer have sufficient energy to escape through the chimney or flue gas line to the outside. To ensure that the heating system nevertheless works properly, the exhaust gases must be transported outside with the aid of blowers or fans. This creates an overpressure within the exhaust system. Any leaks in the exhaust pipes would therefore lead to toxic flue gases escaping into the room air. It is therefore advisable to carry out a leak test of the exhaust system.
