Wöhler A 450 L Flue Gas Analyser

5,000 ppm CO-Sensor
Order no. 4503
Wöhler A 450 L Flue Gas Analyser
Wöhler A 450 L Flue Gas Analyser
Wöhler A 450 L Flue Gas Analyser
    Wöhler A 450 L Flue Gas Analyser
    Wöhler A 450 L Flue Gas Analyser
    Wöhler A 450 L Flue Gas Analyser
    Wöhler A 450 L Flue Gas Analyser

    Wöhler A 450 L Flue Gas Analyser

    This is where Wöhler excels: A reasonably priced flue gas analyser that offers all measurement and tuning functions. A small and lightweight flue gas analyser enclosed in an eye-catching, sturdy housing. The Wöhler A 450 is a handheld device with user friendly touchscreen control, displays all measurement data on screen or connect and view on your smart devices.

    Android iOS
    £1,060.00
    Price plus VAT and shipping
    Delivery time 7-14 working days, New Goods

    £48.52 / month

    incl. Full Leasing Service (without VAT)

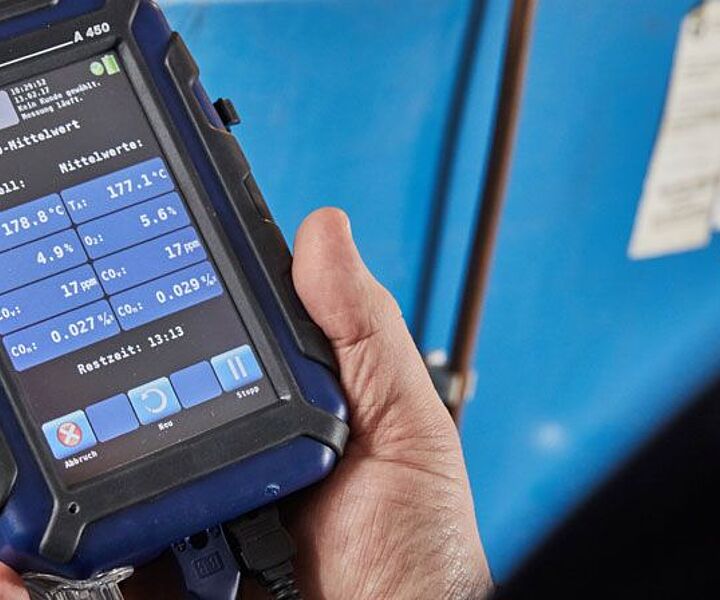

    Compact flue gas analyser
    Compact and robust

    All measurement and calculation values at a glance on the 5" screen. Operation is via an intuitive touch display. The structured menu navigation simplifies your work steps.

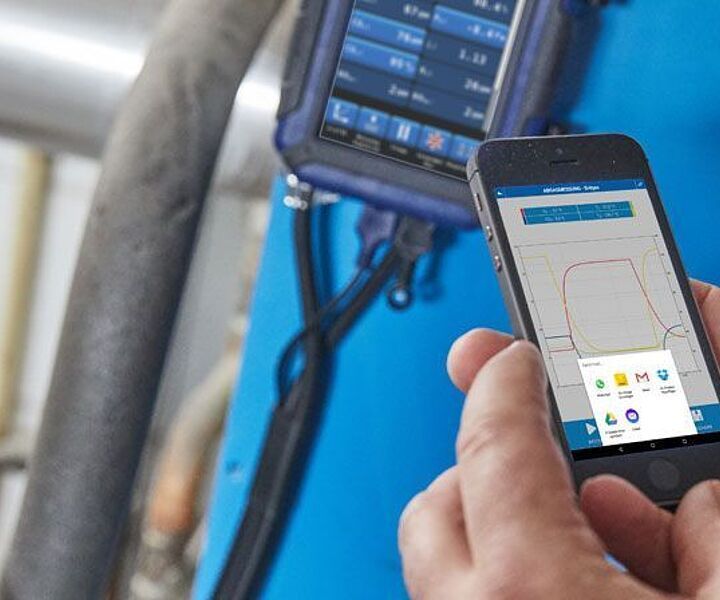

    Exhaust gas measurement on the smartphone
    Wöhler exhaust gas analysis app (Android & iOS)

    The Wöhler flue gas analysis app enables the measurement to be transferred to a mobile device. (In addition, the app enables a direct connection to mobile sweeping district management programmes and the sending of the measurement report, e.g. by email and messenger services.

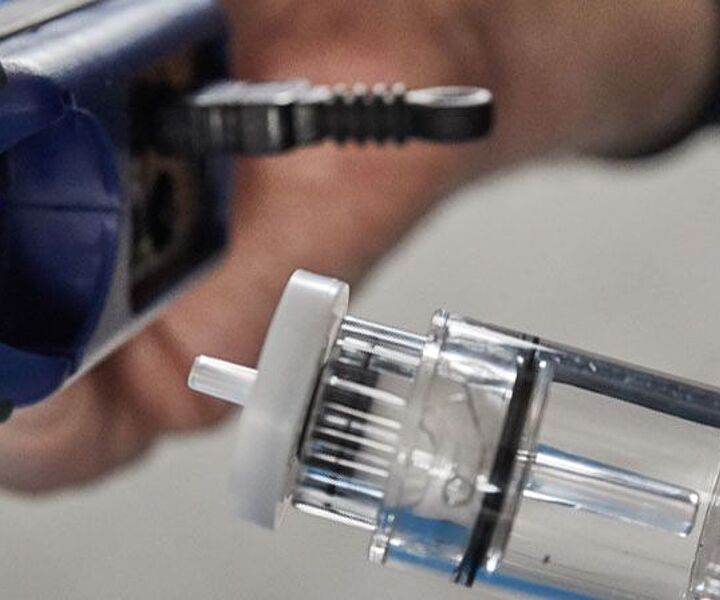

    Maintenance code trap flue gas analyser
    Easy maintenance

    The condensate trap can be easily pulled out to change the cotton wool and water stop filters. The sensors of the Wöhler A 450 L are protected by 3 filters.

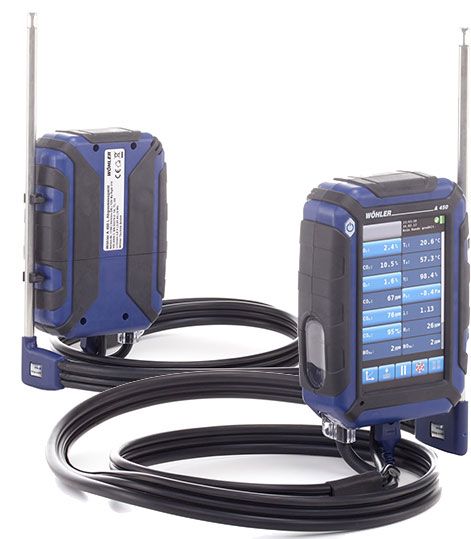

    Wöhler A 450 L product comparison
    1) O2 sensor and CO sensor 10,000 ppm 48 months, CO sensors 5,000 ppm and 100,000 ppm 24 months; excluding thermocouple, rechargeable battery and optional NO sensor. For further information, please refer to our General Terms and Conditions.
    Product comparison
     Wöhler
    A 450 L    		Wöhler
    A 450 ECO    		Wöhler
    A 450
    48 months sensor and device guarantee1)
    (CO sensor 24 months guarantee)
    Measurement according to 1st BImSchV and KÜO
    Adjustment work on gas / oil systems
    Burner adjustment aid
    Heating check 2.0
    4 Pa test
    CO sensor H2-compensated
    Flue gas probe pluggable
    QR code function
    Filter technology3-fold3-fold4-fold
    WLAN, infrared, USB
    Lithium-ion batteryUp to 6 hours of battery life
    (up to 17 hours of battery life optional)    		up to 6 hours standby time
    (up to 17 hours standby time optional)    		Up to 17 hours service life
    NO sensoroptionaloptionaloptional optional
    Possible sensors333



    All properties
    48 months device warranty incl. sensor warranty

    without maintenance conditions ¹

    Large 5" colour touchscreen

    Display of up to 14 measured values and calculated values

    Intuitive operation

    Via touchscreen

    High CO measuring range

    Safety due to high CO measuring range

    Effective condensate protection

    Multi-stage filter technology and electronic filter monitoring

    Free app

    For mobile data exchange (e.g. also natural gas conversion from L to H)

    Data transmission

    Via USB, WLAN or infrared

    Storage in the device

    From 1,000 measurement data sets

    Up to 17 operating hours

    With lithium-ion battery

    Additional Information
    Basic Set

    Scope of supply:
    Wöhler A 450 L with 5,000 ppm CO sensor
    WIFI, USB and IR interface
    probe 250 mm with 1.5 m hose
    USB charger with micro USB cable
    LI-ION battery 3.6 V / 2250 mAh
    25 cotton filters

    24 months warranty
    Property Value
    CO Range up to 5,000 ppm
    TÜV certified for Adjustment Control
    Touch Screen Yes
    Interface WLAN, USB, IR
    Long Time Sensor Yes
    Related products

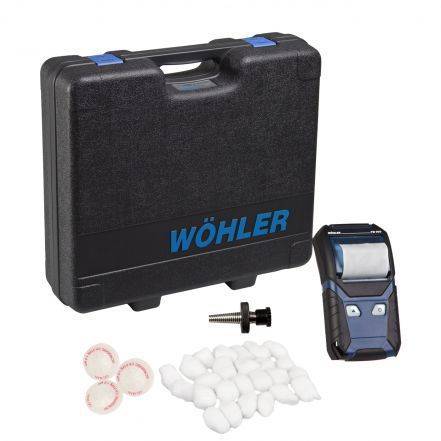

    Starter Kit Maintenance Tasks
    Starter Kit Maintenance Tasks
    for Wöhler A 450 L
    Order no. 6596

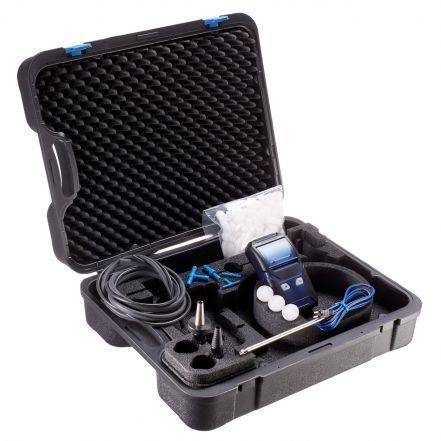

    Comfort Set Maintenance Tasks
    Comfort Set Maintenance Tasks
    for Wöhler A 450 L / A 450
    Order no. 6597
    Water Stop Filters 3 pieces
    Water Stop Filters 3 pieces
    for Wöhler A 450 / A 550
    Order no. 9621
    Thermal Paper
    Thermal Paper
    10 rolls
    Order no. 4145

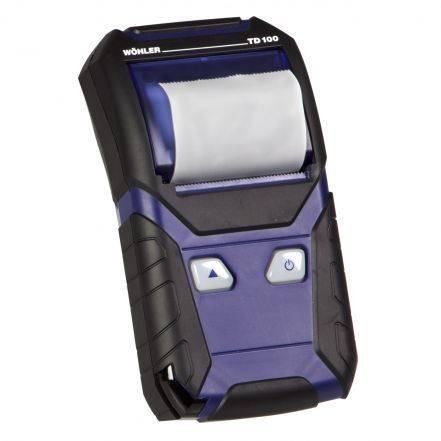

    Wöhler TD 100 Thermal Fast Printer
    Wöhler TD 100 Thermal Fast Printer
    Order no. 4160
    Probe 250mm
    Probe 250mm
    with 1.5 m hose for A 450 L
    Order no. 4498

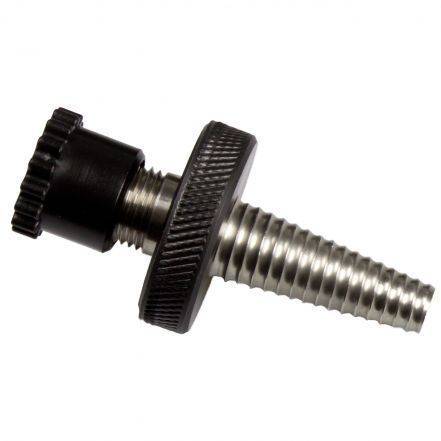

    Clamping Cone
    Clamping Cone
    for probes Ø 8 mm
    Order no. 2494
    Air Temperature Probe 220 mm
    Air Temperature Probe 220 mm
    for Wöhler A 450 / A 550
    Order no. 6545
    Coarse Filters 5 pieces
    Coarse Filters 5 pieces
    for Wöhler A 450 / A 550
    Order no. 9632
    O2-Sensor
    O2-Sensor
    field replaceable
    Order no. 8963
    Threaded cone
    Threaded cone
    for probes Ø 8 mm
    Order no. 1235
    Air Temperature Plug
    Air Temperature Plug
    Wöhler A 450 / A 550
    Order no. 5517
    Servicebag Wöhler A 450
    Servicebag Wöhler A 450
    Order no. 4734

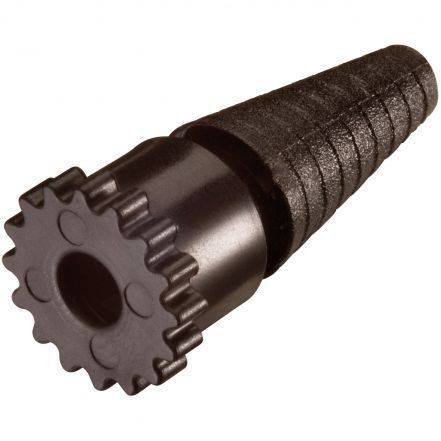

    PTFE Cone
    PTFE Cone
    for air temp. probes Ø 8 mm
    Order no. 2463
    Wadding filters
    Wadding filters
    pack with 150 pieces
    Order no. 4288

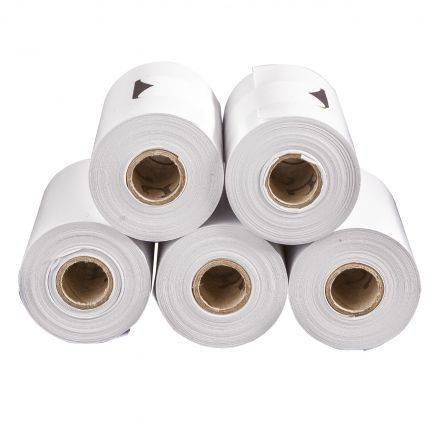

    Thermal Paper, self-adhesive
    Thermal Paper, self-adhesive
    5 rolls, for Wöhler TD 100
    Order no. 14145

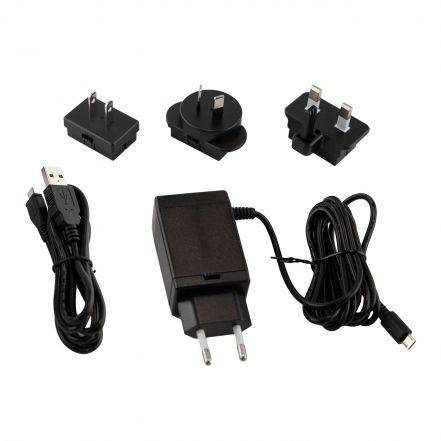

    Charger
    Charger
    for Wöhler A 550 / A 450 / L 200
    Order no. 5502

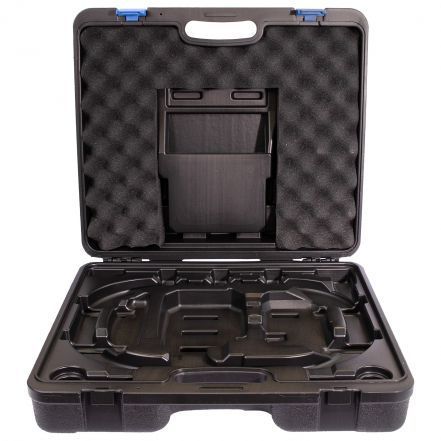

    Plastic Case MIDI
    Plastic Case MIDI
    for Wöhler A 450 L
    Order no. 6594

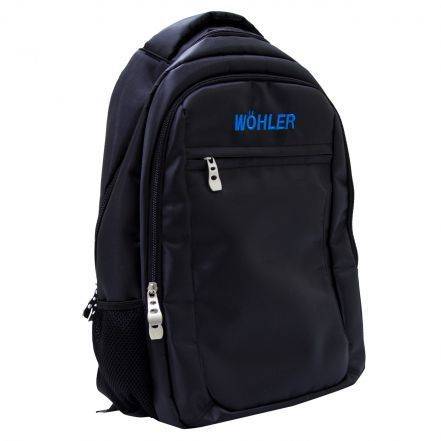

    Backpack
    Backpack
    for Wöhler A 450 / A 550
    Order no. 5101
    Wadding filters
    Wadding filters
    pack with 25 pieces
    Order no. 4286

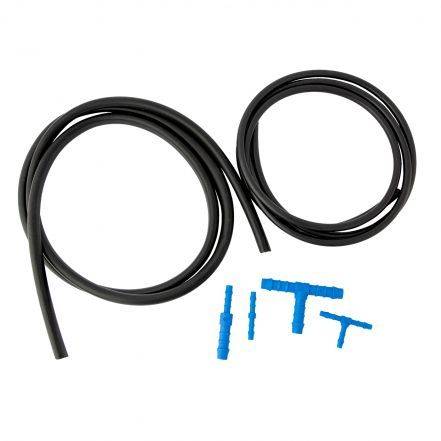

    Pressure Measurement Set
    Pressure Measurement Set
    for Wöhler Digital Manometer
    Order no. 56126

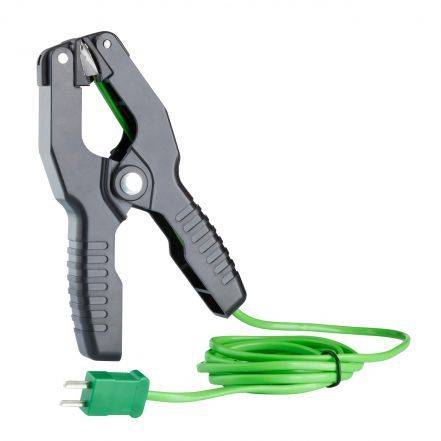

    Clamp Temperature Sensor type K
    Clamp Temperature Sensor type K
    1.5m cable
    Order no. 62616
    Penetration Temp. Probe TF4
    Penetration Temp. Probe TF4
    for Wöhler A 4xx, A 5xx, A 600, DC 4xx
    Order no. 6629
    Extension Cable 2.8 m
    Extension Cable 2.8 m
    for Temperature Probes
    Order no. 7772
    Flue Gas Temp. Probe TF5
    Flue Gas Temp. Probe TF5
    for Wöhler A 500 / DT 310
    Order no. 6635
    Surface Temperature Probe TF1
    Surface Temperature Probe TF1
    for Wöhler A 4xx/5xx/DC 41xx
    Order no. 6625
    CO-Sensor 5.000 ppm
    CO-Sensor 5.000 ppm
    field replaceable
    Order no. 8964

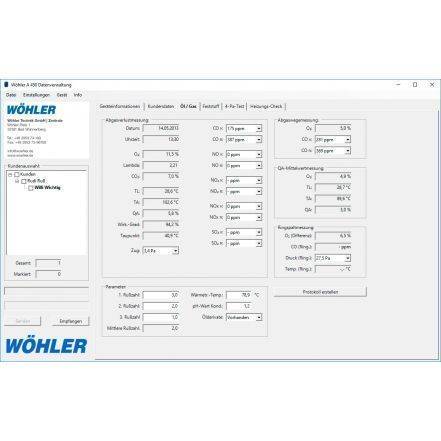

    PC-Software Wöhler A 450
    PC-Software Wöhler A 450
    Languages EN / FR / IT / CZ / NL / CN
    Order no. 4499
    Downloads
    Wöhler A 450 - Leaflet

    PDF, 659.67 KB
    Wöhler A 450 - Manual

    PDF, 2.43 MB
    Wöhler A 450 PC software - Manual

    PDF, 1.61 MB
    Wöhler A 450 - Technical Data

    PDF, 276.56 KB
